AGS-11/2
Universal Air Cooled Generator AGS-11/2
Designed for generating gas-aerosol mixture at concentrations required to extinguish a fire.
Applies to:
AGS-11/2 is recommended for the protection of vehicles, electronic equipment, high-voltage power installations, various high-frequency devices operating in including vehicles, since it corresponds to the requirements of vibration loads on railway / road and air transport.
-

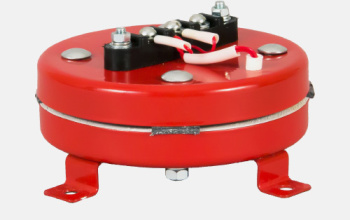

AGS-11/2 is a compact, low metal cylindrical body with a nozzle opening on the exterior side. With its small size, the generator provides a significant protective capacity – up to 3,4m3.
By changing the design of the system, the mass fraction of the condensed phase has been significantly reduced and lowered the temperature of the generator frame.
Principle of operation:
By applying an electrical or thermal pulse on activation node *a solid aerosol charge is ignited. Products of combustion exit through the nozzle gap of the generator and enter the protected area.
Manufacturer’s warranty:
The manufacturer guarantees the generator to the technical requirements and Russian standards if the consumer follows the conditions specified in the instruction manual.
The warranty period for the generator – 18 months.
Exploitation period – 5 years.
Service period – 10 years.
-
Maximum protected volume of conditionally sealed room
(d * <0,001 m-1)3,4m3 Curb weight of the generator 0,85kg Weight of the aerosol charge 0.17 kg Working time 11 Dimensions Diameter 150 mm Height 65 mm Activation starter UST-7.5 Resistance of the activation starter 7,8 ± 0,8 Ohm Minimum start-up current 1.5А Starting voltage 2 The duration of the trigger pulse not less than 2.0 sec The inertia of the generator starter <1.5 sec Operating Conditions Operating Temperature Range ± 50 °С. relative humidity at 25 ° C. 98% Классы тушения пожаров
-
-
